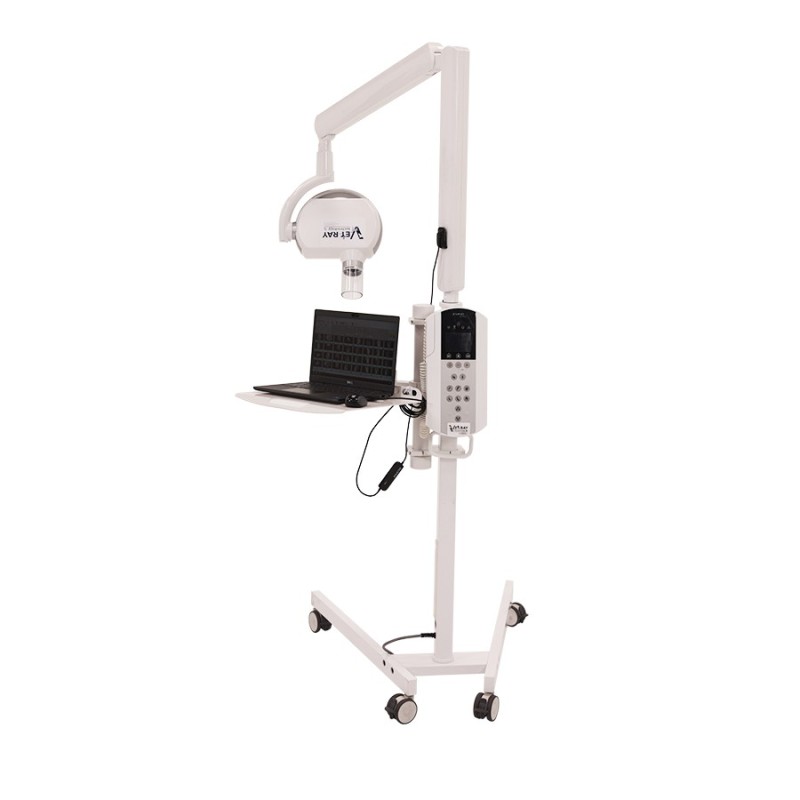

Sedecal Vet-Ray Mobile Dental X-Ray Generator System

Includes mobile dental generator on casters, laptop with software, laptop tray, one #2 IO SOPIX sensor, bisecting angle device, software training (remote), positioning training (in person) and installation.

The future of veterinary dental imaging where advanced technology meets excellence. Made for veterinary dentistry, with unmatched support for you every step of the way. Built for longevity, a durable, high-quality systems designed for daily use. Smarter workflow faster positioning, fewer retakes and intuitive software.

The EASY BUTTON for all dental radiography provides consistent clear precise image quality with ACE proprietary technology.  Automatically controls exposures for optimal images preventing overexposure.  Increases visualization of anatomy and pathology details.  Simple use software allows for quick and easy learning. Dental PACS with DICOM compatibility optional with manual ability to import and export images and reports.  FDA approved and AI enhanced.  Portable, precise and powerful complete turnkey solutions with free installation and training.

Vet-Ray’s exclusive digital dental sensor positioner and bisecting angle guide protects cable and sensor from bites.  Tapered corners make positioning easier for you and safer for your patient. Integrated CMOS technology for veterinary application.  5 year limited warranty on sizes #1 and #2 Sopix sensor, 2 year on Quickpro size #4 against manufacturer defect.  One free replacement sensor due to bites within 5 years.  1 year remote IT support.

•        Pixel Pitch: 20 um x 20 um
•        Resolution: 20 um
•        Grayscale (bit): 16,384 (14)
•        Connection: USB 2.0/ Bite Resistant Guard
•        Cable Length: 3.70 meters (12.1ft) detector cable

Size #1 Active Area 25 mm x 39 mm , 1.5 million pixels

Size #2 Active Area 31mm x 42 mm,  2.21 millions pixels

Size #4 Active Area 77 mm x 54 mm

Dedicated circuit and pre-installation form required for wall mount.  Selectable are length available with maximum horizontal reach of 87".  Mobile stand includes proprietary folding laptop.  Dedicated circuit recommended and pre-installation form required. 2 year warranty on both mobile and wall mounted generators.  3 year limited warranty for manufacturer defect on laptop.

Generator Specs

Line Voltage 100V/240V 50/60 Hz

AMP draw 8.5A (@100V)

Technique ranges:

X-RayTube Voltage: 60/65/70 kV

X-Ray Tube Current: 4-7mA (+/-1mAsteps)

Exposure times: 0.02-2s (21steps, R'10)

Maximum Combinations of Loading Factors

70 kV/6 mA/2 s

65 kV/7 mA /2 s

60 kV or 65 kV=7mAmax./2s max.

70 kV=6 mA max./2 s max.

Cone length: 20 CM (standard)

Total filtration: 2.2 mm Al/70 kV

Inherent Filtration: 1.2mm Al equivalent /70kV

Focal spot: 0.4 mm

Duty cycle: 1:30

Remote hand switch length: 13feet
